[유니티 강좌] 2D RPG 쯔꾸르 제작하기 Part 8 : 오디오 매니저

아메숑 2019. 3. 14. 05:51

출처 - https://www.youtube.com/watch?v=EdsVx9yN2Cc&list=PLUZ5gNInsv_NW8RQx8__0DxiuPZn3VDzP


1. 코드

AudioManager.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
using System.Collections;
using System.Collections.Generic;
using UnityEngine;


//인스펙터 창에 강제로 띄운다.
[System.Serializable]
public class Sound
{
    public string name; //사운드 이름

    public AudioClip clip;  //사운드 파일
    private AudioSource source; //  사운드 플레이어

    public float volumn;
    public bool loop;

    public void SetSource(AudioSource _source)
    {
        source = _source;
        source.clip = clip;
        source.loop = loop;
    }

    public void SetVolumn()
    {
        source.volume = volumn;
    }

    public void Play()
    {
        source.Play();
    }

    public void Stop()
    {
        source.Stop();
    }

    public void SetLoop()
    {
        source.loop = true;
    }

    public void SetLoopCencel()
    {
        source.loop = false;
    }

}


public class AudioManager : MonoBehaviour
{
    static public AudioManager instance;

    [SerializeField]
    public Sound[] sounds;

    //start보다 더 먼저 실행되는 함수
    private void Awake()
    {
        if (instance == null)
        {
            instance = this;
            //맵을 이동해도 카메라를 파괴시키지 않는다.
            DontDestroyOnLoad(this.gameObject);
        }
        else
        {
            Destroy(this.gameObject);
        }
    }

    // Start is called before the first frame update
    void Start()
    {
        for(int i = 0; i < sounds.Length; i++)
        {
            GameObject soundObject = new GameObject("사운드 파일 이름 : " + i + "=" + sounds[i].name); //추가 될 객체의 이름
            sounds[i].SetSource(soundObject.AddComponent<AudioSource>());
            soundObject.transform.SetParent(this.transform);    //이 스크립트가 실행되는 객체안에 오디오 객체가 추가 된다. (상하관계)
        }

    }

    public void Play(string _name)
    {
        for(int i = 0; i < sounds.Length; i++)
        {
            if(_name == sounds[i].name)
            {
                sounds[i].Play();
                return;
            }
        }
    }

    public void Stop(string _name)
    {
        for (int i = 0; i < sounds.Length; i++)
        {
            if (_name == sounds[i].name)
            {
                sounds[i].Stop();
                return;
            }
        }
    }

    public void SetLoop(string _name)
    {
        for (int i = 0; i < sounds.Length; i++)
        {
            if (_name == sounds[i].name)
            {
                sounds[i].SetLoop();
                return;
            }
        }
    }

    public void SetLoopCancel(string _name)
    {
        for (int i = 0; i < sounds.Length; i++)
        {
            if (_name == sounds[i].name)
            {
                sounds[i].SetLoopCencel();
                return;
            }
        }
    }

    public void SetVolumn(string _name, float _Volumn)
    {
        for (int i = 0; i < sounds.Length; i++)
        {
            if (_name == sounds[i].name)
            {
                sounds[i].volumn = _Volumn;
                sounds[i].SetVolumn();
                return;
            }
        }
    }

    // Update is called once per frame
    void Update()
    {

    }
}

cs


MovingObject.cs

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class MovingObject : MonoBehaviour
{
    static public MovingObject instance;

    //transferMap 스크립트에 있는 trasferMapName 변수의 값을 가져온다.
    public string currentMapName;

    private BoxCollider2D boxCollider;
    public LayerMask layerMask; //통과가 불가능한 레이어를 설정

    public float speed;

    private Vector3 vector;

    public float runSpeed;
    private float applyRunSpeed;
    private bool applyRunFlag = false;

    public int walkCount;
    private int currentWalkCount;

    private bool canMove = true;

    private Animator animator;

    //public AudioClip walkSound_1;
    //public AudioClip walkSound_2;

    //private AudioSource audioSource;

    public string walkSound_1;
    public string walkSound_2;
    public string walkSound_3;
    public string walkSound_4;

    private AudioManager theAudio;



    // Start is called before the first frame update
    void Start()
    {
        if(instance == null)
        {
            //맵을 이동해도 캐릭터를 파괴시키지 않는다.
            DontDestroyOnLoad(this.gameObject);
            boxCollider = GetComponent<BoxCollider2D>();
            //audioSource = GetComponent<AudioSource>();
            animator = GetComponent<Animator>();
            theAudio = FindObjectOfType<AudioManager>();
            instance = this;
        }
        else
        {
            Destroy(this.gameObject);
        }

    }


    IEnumerator MoveCoroutine()
    {
        while (Input.GetAxisRaw("Horizontal") != 0 || Input.GetAxisRaw("Vertical") != 0)
        {
            if (Input.GetKey(KeyCode.LeftShift))
            {
                applyRunSpeed = runSpeed;
                applyRunFlag = true;
            }
            else
            {
                applyRunSpeed = 0;
                applyRunFlag = false;
            }

            vector.Set(Input.GetAxisRaw("Horizontal"), Input.GetAxisRaw("Vertical"), transform.position.z);

            if (vector.x != 0)
                vector.y = 0;

            animator.SetFloat("DirX", vector.x);
            animator.SetFloat("DirY", vector.y);

            RaycastHit2D hit;   //레이저를 쏴서 방해물이 있으면 방해물을 리턴하고, 아무것도 없으면 null리턴

            Vector2 start = transform.position; //캐릭터의 현재위치
            //speed = 2.4 walkCount = 20 이므로 48픽셀만큼 이동
            Vector2 end = start + new Vector2(vector.x * speed * walkCount, vector.y * speed * walkCount);   //캐릭터가 이동하고자 하는 곳

            boxCollider.enabled = false;    //캐릭터 자신의 박스컬라이더를 인식못하게 해줌
            hit = Physics2D.Linecast(start, end, layerMask);
            boxCollider.enabled = true;

            if (hit.transform != null)    //부딪히면 다음 명령어들은 실행하지 않음
                break;

            animator.SetBool("Walking", true);


            int temp = Random.Range(1, 5);
            switch (temp)
            {
                case 1:
                    theAudio.Play(walkSound_1);
                    break;
                case 2:
                    theAudio.Play(walkSound_2);
                    break;
                case 3:
                    theAudio.Play(walkSound_3);
                    break;
                case 4:
                    theAudio.Play(walkSound_4);
                    break;
            }


            while (currentWalkCount < walkCount)
            {
                if (vector.x != 0)
                {
                    transform.Translate(vector.x * (speed + applyRunSpeed), 0, 0);
                }
                else if (vector.y != 0)
                {
                    transform.Translate(0, vector.y * (speed + applyRunSpeed), 0);
                }
                if (applyRunFlag)
                    currentWalkCount++;
                currentWalkCount++;
                yield return new WaitForSeconds(0.01f);

                /*
                //walkcount가 20이므로 2번 실행됨
                if(currentWalkCount % 9 == 2)
                {
                    int temp = Random.Range(1, 2);
                    switch (temp)
                    {
                        case 1:
                            audioSource.clip = walkSound_1;
                            audioSource.Play();
                            break;
                        case 2:
                            audioSource.clip = walkSound_2;
                            audioSource.Play();
                            break;
                    }
                }*/


            }
            currentWalkCount = 0;

        }
        animator.SetBool("Walking", false);
        canMove = true;


    }

    // Update is called once per frame
    void Update()
    {
        if(canMove)
        {
            if (Input.GetAxisRaw("Horizontal") != 0 || Input.GetAxisRaw("Vertical") != 0)
            {
                canMove = false;
                StartCoroutine(MoveCoroutine());
            }
        }

    }
}

cs



2. 강좌

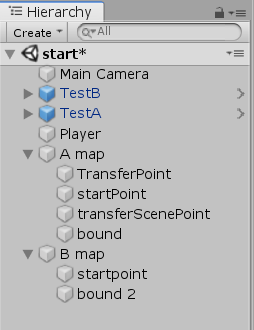

빈 객체 생성해서 a map과 b map을 구분한다.

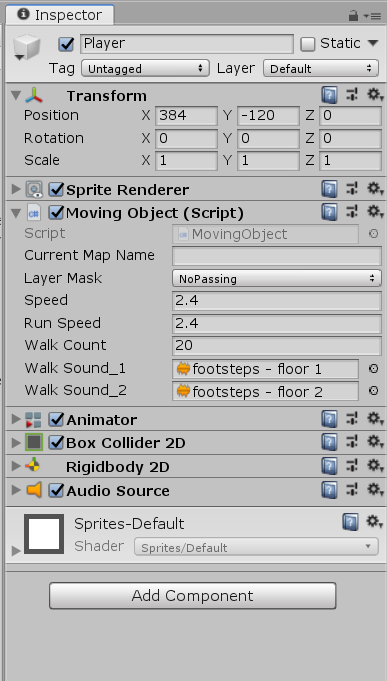

walk sound에 알맞은 사운드를 넣고, audio source 컴포넌트를 추가해준다.

audiomanager.cs를 생성한다.



빈 객체에 생성한 스크립트를 추가한다.

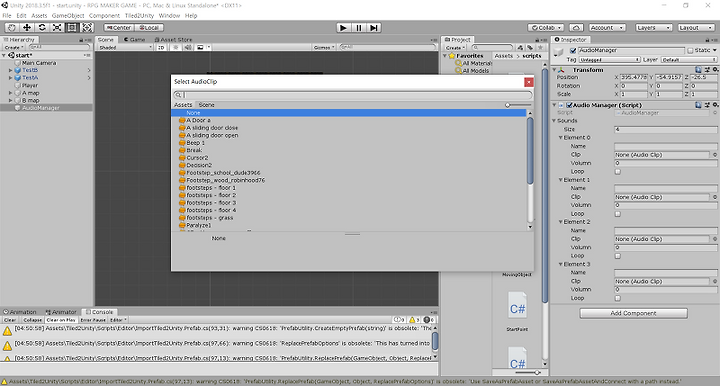

오디오를 추가한다.

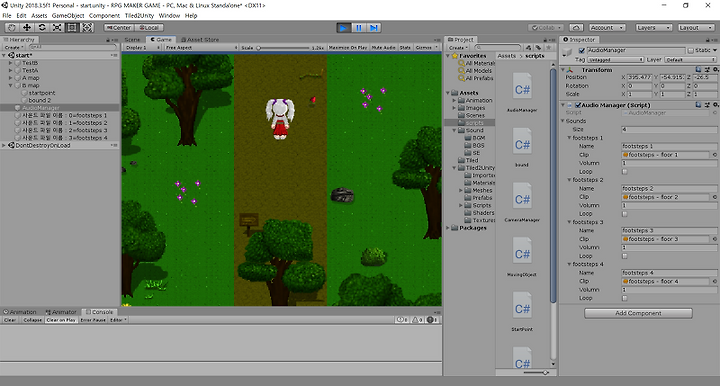

플레이를 하면 왼쪽에 네 개의 객체가 생성된 것을 확인할 수 있다.

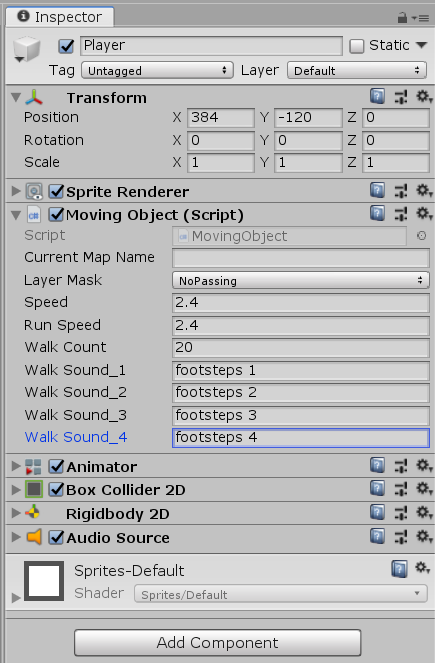

플레이어에 새로 생성된 입력란에 audiomanager 객체에서 지정했던 사운드의 이름을 적어준다.
